2304 - Nr.1.4362

Rodinox® R4 round with improved adherence for concrete reinforcement when high durability is required in the presence of specific climatic and environmental conditions.

Rodinox® Size Range

available in coils - range from 6 to 16 mm - and in bars - range from 6 up to 40mm

Rodinox® Grade

to meet the various needs, Rodinox® is manufactured in the following types:

Grade		Type	Reference Steel
Rodinox® R4		duplex	2304	1.4362

Chemical Composition

the indicative chemical composition of Rodinox® is as follows:

Grade	C	Mn	Si	S	P	Cr	Ni	Mo	N	Cu
Rodinox® R4	0,02	0,8	0,5	<0,010	0,04	23,2	4,1	0,2	0,10	0,30

Rodinox® Standard Reference

can be produced in accordance with the following standards:

Grade	Ministerial Decree 14.01.2008 “Technical Standards for Construction” class B450C	BS 6744: 2016
Grade		BS 6744: 2016
Rodinox® R4	Bars 6 - 32 mm	Rolls 6 - 16 mm	Bars 6 - 40 mm

Rodinox® Weight

mass per linear meter as a function of the type of steel (units kg/m):

Grade	Ø nom. mm	5	6	7	8	10	12	14	16	18	20	22	24	25	26	32	40
Grade	section mm2	19,6	28,3	38,5	50,3	78,5	113,1	153,9	201,1	254,5	314,2	380,2	452,4	490,9	531,0	804,2	1256,6
Rodinox® R4*		0,153	0,221	0,300	0,392	0,612	0,882	1,200	1,569	1,985	2,451	2,965	3,529	3,829	4,142	6,266	9,790

* comply with BS 6744 regulations

Relevant Products

304L - Nr.1.4307 / 304LN - Nr.1.4315

Rodinox® R1

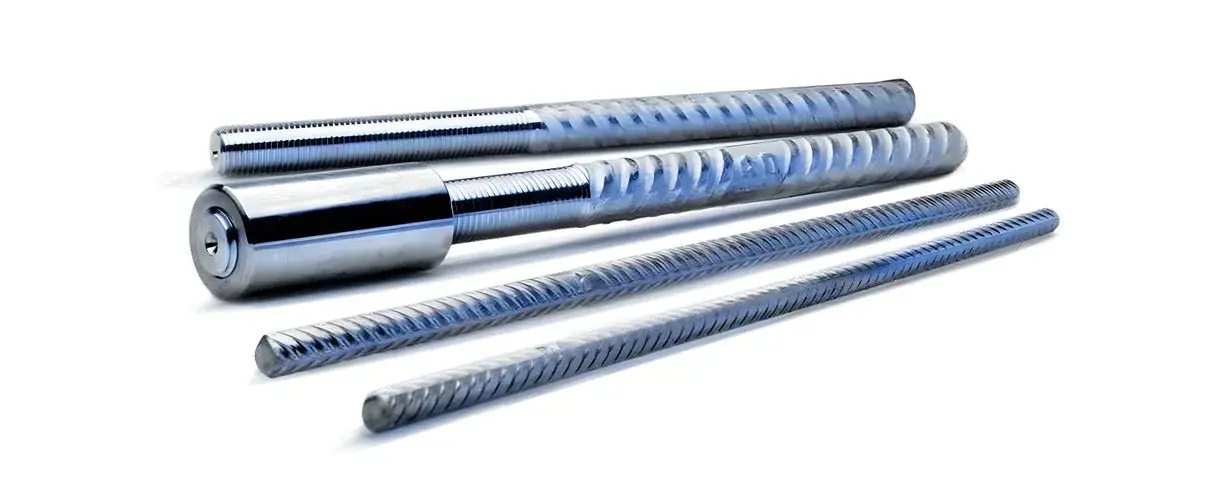

316L - Nr.1.4404 / 316LN - Nr.1.4406
